Kempower Mega Satellite
The ultimate MCS EV charger for electric trucks based on Kempower’s state-of-the-art technology.
Kempower Mega Satellite with MCS
The Kempower Mega Satellite with MCS plug is designed for heavy-duty electric vehicles that require reliable power levels above 1 MW even in demanding conditions. Its patent-pending cable management system and user-friendly touch screen create premium charging experiences for everyone, everywhere.
- Charging power: Max. 1.2 MW
- Output current: 1,500A continuous at +40°C
- Voltage range: 150–1000 VDC*
- Cable reach: Max 2.7 meters
*Design is future proofed up to 1,250 VDC. Full voltage range in future releases.

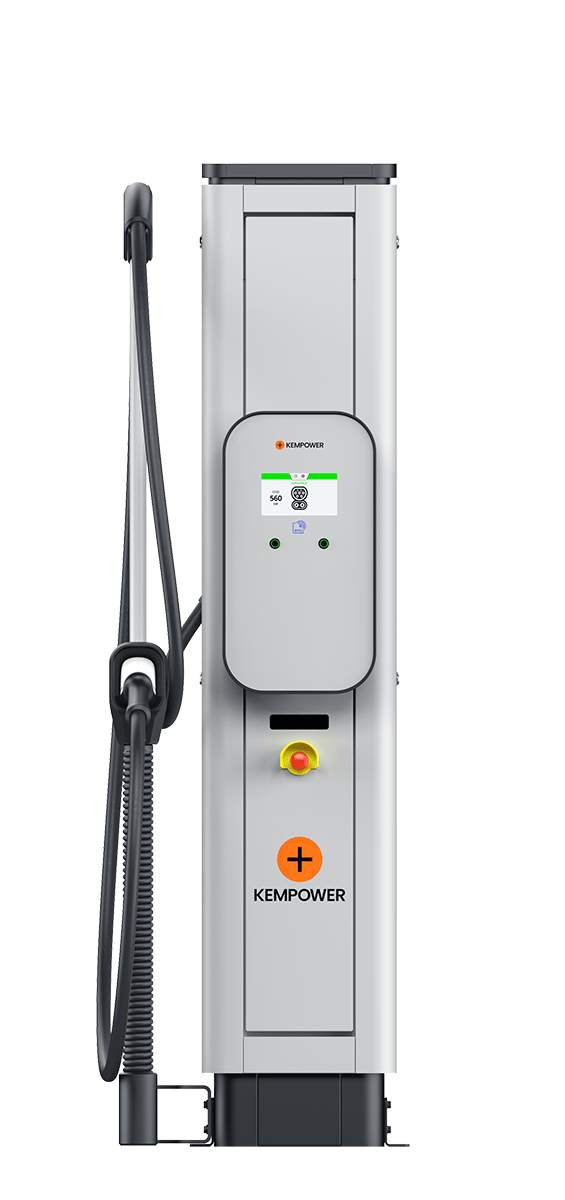

Kempower Mega Satellite with High-Power CCS
Kempower Mega Satellite with CCS plug is designed for heavy-duty electric vehicles that require reliable and continuous high charging power up to 560 kW. Its patent-pending cable management system and user-friendly touch screen create premium charging experiences for everyone, everywhere.
- Charging power: Max. 560 kW
- Output current: 700A continuous at +40°C
- Voltage range: 150–1,000 VDC
- Cable reach: Max 5 meters
Key benefits
-
Proven technology
To ensure maximum compatibility, the first version of Kempower Megawatt Charging System comes with a peak power of 1.2 MW and a Kempower Mega Satellite. This solution is based on Kempower’s state-of-the-art technology.
-
Maximum flexibility
Kempower Mega Satellite can be connected with an MCS or high-power CCS in the same system, enabling dynamic power sharing between all outputs.
-
Upgradability
Customers in possession of Kempower’s latest technology can upgrade existing systems to MCS by combining two 600 kW Kempower Power Units.
Explore the latest Kempower news
Kempower delivers distributed megawatt charging solution to Norway’s largest grocery retailer ASKO’s depot in Vestby
Kempower charges with MCS standard at the state-of-the-art Alfredsson Transport truck depot in Sweden
Kempower to Supply DC Fast Chargers and Megawatt Charging System for EV Realty’s San Bernardino Truck Fleet Hub in California
Kempower introduces Megawatt Charging System for electric trucks and electric vehicles using power above one megawatt
FAQ
The Kempower Mega Satellite with MCS provides up to 1.2 MW charging power and 1,500A continuous current, while the Mega Satellite with high-power CCS delivers up to 560 kW and 700A continuous current. Both are suitable for heavy-duty EVs, but the MCS version supports much higher power and current levels.
Existing systems built with Kempower’s latest technology can be upgraded to MCS by combining two 600 kW Kempower Power Units.
A Kempower Mega Satellite can be equipped with both MCS and high-power CCS in the same system. Dynamic power sharing enables the distribution of available power between all outputs, increasing flexibility and optimizing charging resources for fleets.
