Powerful charging.
Simplified for your operations.
Key benefits
-
Robust design
The IP65 enclosure is constructed using stainless steel. This makes the Kempower Control Unit suitable for harsh outdoor environments.
-
Simple UX
The charging session status is indicated by LEDs. The optional equipment stop can also be wired in desired location for easy access.
-
Connectivity
On ChargEye, each Control Unit is equivalent to a single output satellite. It can be monitored, controlled and set up remotely.
Up to 400 kW with Dynamic Power Sharing
With up to 12 outputs and Dynamic Power Sharing, Control Unit supports a wide range of fleets and vehicles.
The Control Unit V1 comes equipped with a 200 A or 300 A charging cable and Control Unit V2 with 200 or 375 A charging cable, making them suitable for both overnight and fast charging applications, for electric trucks, electric buses and other heavy duty EV fleets.
Control Unit V2
The Kempower Control Unit V2 combines high charging performance, durable construction, flexible installation options, and advanced metering capabilities to meet the requirements of modern commercial EV charging operations.
The Control Unit V2 can deliver up to 400 kW of distributed charging power – 160 kW more than the Control Unit V1 solution. Quicker charging means vehicles can be ready to return to the road as soon as loading is complete, with no separate charging stop needed, so fleet operators can continue to be profitable, even while electrifying.
- IP65-rated stainless steel enclosure
- Available with 200 A and 375 A charging cable
- Boost functionality up to 500 A (for 375 A cable)
- IP69-rated charging cable as standard
- Charging cable lengths 5 m, 7 m and 10 m
- Optional MID/LNE/PTB energy meter
- Optional Eichrecht-approved DC energy meter and Eichrecht certification
- 4-wire energy measurement approach
- Integrated busbar design for easier installation and increased cable routing space
- Integrated equipment stop
Control Unit V1
The Kempower Control Unit V1 is suitable for harsh conditions, such as a fenced depot area, where a touchscreen offers no additional value. The sleek industrial IP65 casing of the Control Unit is particularly advantageous in demanding environments.
Control Unit V1 has maximum charging power up to 240 kW per output to keep your fleets on the move.
- IP65 stainless steel enclosure
- CCS2 charging cable options 200 A and 300 A
- Charging cable lengths 5 m, 7 m and 10 m
- 10 m IP69-rated charging cable option available
- Maximum charging power up to 240 kW per output
- Equipment stop button integrated or remotely installed
- LED indicators for charging status and state of charge
- Up to 80 m distance between Power Unit and Control Unit
- Operating temperature range from -30°C to +50°C
Versatile mounting options for diverse environments

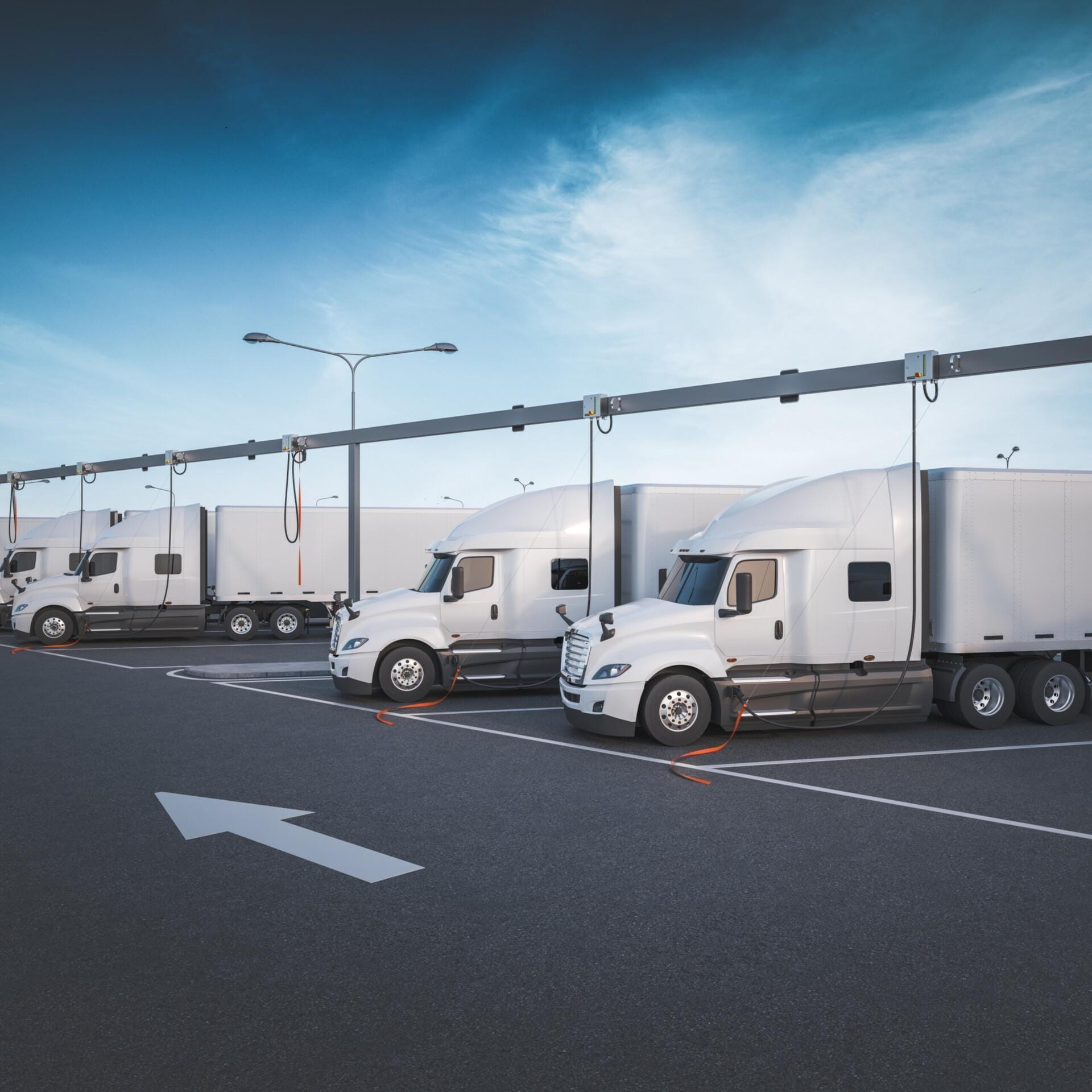

Make the most of your depot footprint. The Control Unit V1 and V2 can be mounted in various locations, including walls, overhead truss structures, bollards and even in underground solutions.
Control Unit can also be used with Kempower Cable Arm, cable reels and ceiling mounted pantographs, freeing up valuable ground space and enabling operators to retain their existing depot layout.
Installation can be faster and more cost-effective thanks to reduced civil works, while the redesigned internal busbar structure provides extra room for easier cable routing.
About 2,000 Control Units delivered globally
Trusted by fleet operators around the world, the Kempower Control Unit has become a proven cornerstone of reliable EV charging infrastructure.
Approximately 2,000 delivered Control Units are powering truck, bus and car fleets around the world. Designed for flexibility, scalability, and high performance, the Control Unit V1 and V2 help you to build efficient charging systems that are ready to grow with your operations.
FAQ
The Control Unit V1 and V2 with a CCS2 charging cable are built for depot and off-highway charging of e-truck, e-bus and other electric vehicle fleets, where a robust, simplified dispenser is wanted.
Control Units are particularly suited to harsh conditions such as a fenced depot area, where a touchscreen adds no value.
The Control Unit V2 delivers a maximum charging power of 400 kW with 375 A cable option.
With Dynamic Power Sharing, that power is distributed across vehicle types, supporting light, medium and heavy-duty vehicles on the same system.
CCS2 charging cables are available in 5 m, 7 m and 10 m lengths, with 200 A and 300 A current ratings for Control Unit V1 and 200 A and 375 A current ratings for Control Unit V2, covering both overnight and fast charging applications.
There is also a 10 m 300 A IP69 charging cable option.
It can be mounted on walls, overhead truss structures, bollards and even in underground installations. It can also be used with the Kempower Cable Arm, with cable reels, and with ceiling-mounted pantographs.
For a partially retractable charging point on a truck loading dock at a distribution centre, a tool balancer can be useful.
The Control Unit comes as IP65 as standard, with the enclosure constructed from stainless steel, making it suitable for harsh outdoor environments.
Charging session status is indicated by LEDs, and an optional equipment stop can be wired to a convenient location.
In ChargEye, each Control Unit is equivalent to a single-output Satellite, and can be monitored, controlled and set up remotely.
